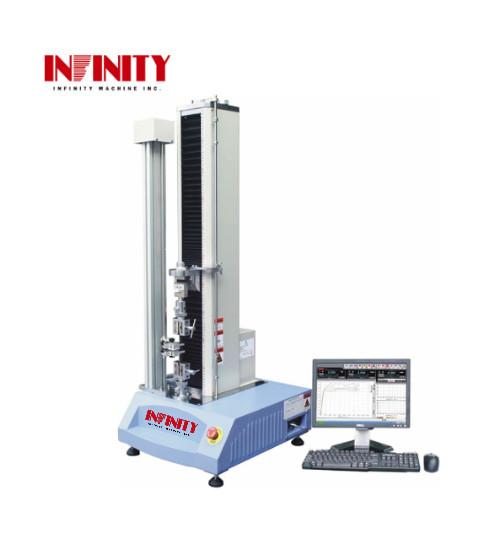

AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment

Infinity Machine International Inc.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment

  • 1
  • 2
  • 3

Brand Name : Infinity Machine

Model Number : RS-8010 & RS-8010A

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Capacity : 50N,100N,200N,500N,200N, 1KN, 2KN, 5KN

Stroke : 650mm or 1000mm

Effective width : 130mm

Software : Standard software

Motor : AC servo Motor

Transmission rod : High accuracy ball screw

Dimension : 500x600x1280mm or 500x600x1550mm

Power Supply : AC220V 10A or specified by user

Contact Now

AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment

Model: RS-8010 & RS-8010A

Purpose:

This UTM are suitable for the testing of tensile, compression, shearing force, adhesion, peeling force, tear strength, fatigue etc for semi-product & finished product in the field of rubber, plastic, metal, nylon, non-woven fabrics, textile, tape, polyfoam, waterproof material, electric wire, electric cable, etc., which are the basic facilities for input quality control(I.Q.C), Quality Control(Q.C.), Physical inspection, Mechanics research and material development.

Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle.

Can record and memorize the whole testing data.

Typical applications:

Rubber tape peeling test at 90 / 180 °

Rubber / plastic tensile test

Plastic bending test

Wire / sheet tensile / bending test

Fabric tearing test

Drink package compression / bursting test

Specification:

Model RS-8010 RS-8010A
Purpose

Test room for precision test,

control by computer

Used for material repeated

test & retention test

Capacity (optional) 50N,100N,200N,500N,200N, 1KN, 2KN, 5KN
Unit (switchable) N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
Load resolution 1/500,000
Load accuracy ±0.25%
Stroke (exclude the grips) 650mm or 1000mm (optional)
Effective width 130mm
Test speed 0.001~500mm/min
Load range rangless
Speed accuracy ±0.5%
Stroke resolution 0.001mm
Motor AC servo Motor
Software Standard software Standard Software
Transmission rod High accuracy ball screw

Main unit dimension

(WxDxH)

500x600x1280mm(stroke at 650mm) or 500x600x1550mm(stroke at 1000mm)

Main unit weight About 140Kg
Power supply AC220V 10A or specified by user

Standards:

ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method A- Single-Coated Tapes at 180° Angle)

ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method F-Single Coated Tapes at 90° Angle)

ASTM D1894-06 Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting

Features:

High accuracy:

Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.

High performance:

Automatic breaking identification, automatically return, units are selectable.

Multi-function:

Can coordinate with different grips, the testing of tensile, compression, bending, shearing, tearing, peeling, etc can be done.

Software control:

Professional software control Tensile testing curve.

AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment

Professional software control Tape peeling testing curve.

AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment

AC Servo Motor Electronic Universal Testing Machine Textile Testing EquipmentAC Servo Motor Electronic Universal Testing Machine Textile Testing EquipmentAC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment

Our Show Room:

AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment

Support and Services:

Technical Support and Services

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.

Packing and Shipping:

Packaging and Shipping

Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.

AC Servo Motor Electronic Universal Testing Machine Textile Testing Equipment

FAQ:

1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.

2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.

8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.N Electronic Universal Testing Machine

5KN lectronic Universal Testing Machine
